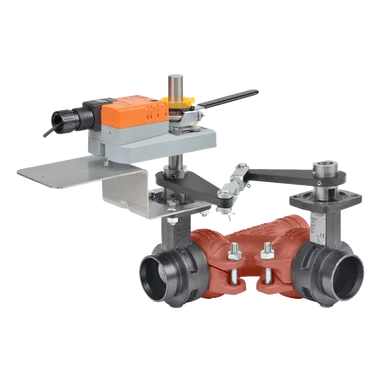

Belimo F750VIC+GMB24-3-X1 3-Way 2″ Butterfly Valve, ANSI Class Grooved AWWA, Cv 115 + Non-Fail Safe Valve Actuator, 24VAC/DC, On/Off, Floating Point Control Signal, 5-Year Warranty

Description

Belimo F750VIC+GMB24-3-X1 : 3-Way 2″ Butterfly Valve, ANSI Class Grooved AWWA, Cv 115 + Non-Fail Safe Valve Actuator, 24VAC/DC, On/Off, Floating Point Control Signal, 5-Year Warranty

Belimo F750VIC butterfly valve assembly with GMB24-3-X1 actuator provides dependable flow control for chilled water and hot water HVAC hydronic systems. The actuator supports floating or 3-point control and common building automation sequences. Use the specifications below to confirm pressure class, voltage, control signal, and enclosure rating before ordering.

Belimo F750VIC Valve Specifications

ANSI Class	Grooved AWWA
Pattern	3-way
Cv	115
Fluid	Chilled or hot water, up to 60% glycol
Body Pressure Rating	ANSI Class Grooved AWWA, 300 psi
Flow characteristic {Tools}	Linear
End Fitting	Grooved
Valve Size	2″ [50]



Belimo GMB24-3-X1 Valve Actuator Specifications
