Description

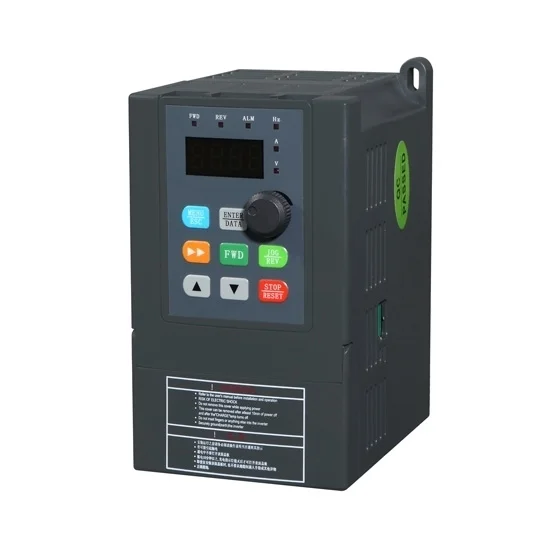

1/2 hp VFD, 0.4 kW, 208V – 240V single phase to three phase variable frequency drive, sale by manufacturer directly.
Specification:
| Basics | Model | GK3000-2S0004 |
| Capacity | 1/2 hp (0.4 kW) | |
| Shipping weight | 2 kg | |
| Dimension | 142*85*110 mm | |
| I/O Feature | Rated current | 3 A |
| Input voltage | 1 phase 220~240V AC | |
| Input frequency | 50Hz/ 60Hz | |
| Output voltage | 3 phase AC 0~input voltage | |
| Output frequency | 0Hz~1000Hz | |
| Over load capacity | 150% of rated current for 1 minute, 180% of rated current for 3 seconds | |
| Control Feature | Control mode | V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC) |
| Communication | RS485 | |
| Speed regulation | 1:100 | |
| Start torque | 150% of rating torque at 1 Hz | |
| Speed control accuracy | ≤±0.5% of rating synchronous speed | |
| Frequency precision | Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2% |
|
| Frequency resolution | Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz |
|
| Torque boost | Automatic torque boost, manual torque boost 0.1%~30.0% | |
| Interior PID controller | Be convenient to make closed-loop system | |
| Automatic energy save running | Optimize V/F curve automatically based on the load to realize power save running | |
| Automatic voltage regulation (AVR) | Can keep constant output voltage when power source voltage varies. | |
| Automatic current limiting | Limit running current automatically to avoid frequent over-current which will cause trip | |
| Environment | Enclosure rating | IP 20 |
| Temperature | –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5% | |
| Humidity | 5%-95%, without condensation | |
| Altitude | ≤1000m; VFD will be derated if above 1000m | |
| Impingement and oscillation | Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g) | |
| Store environment | –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight |
Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.
Details
Tips: Variable frequency drive hardware replacement precautions
- Replace the IGBT. Measure whether the resistance value of each road is balanced.
- Replace the drive board. Need to carefully check whether the plug and socket number is consistent.
- Replace the main control board. After replacing the main control board, set the application parameters, motor parameters and protection parameters of VFD.
- Replace the PG card. Check whether the terminals are normal. If the motor has a vibration or cannot rotate after replacing the card, need to exchange the A and B phase.
- Replace the communication board. Simply check the DIP switch set by VFD hardware station number, and then check that the communication light is normal.
- The communication board of some VFD series is an independent CPU. After the replacement, need to upload configuration program.
