XP Power JSM25 DC/DC Converter, 5V dc/ 5 A, 36V dc Input, 18V Input 25 W, Through Hole, 105 °C Max Temp -40 °C Min Temp,

Description

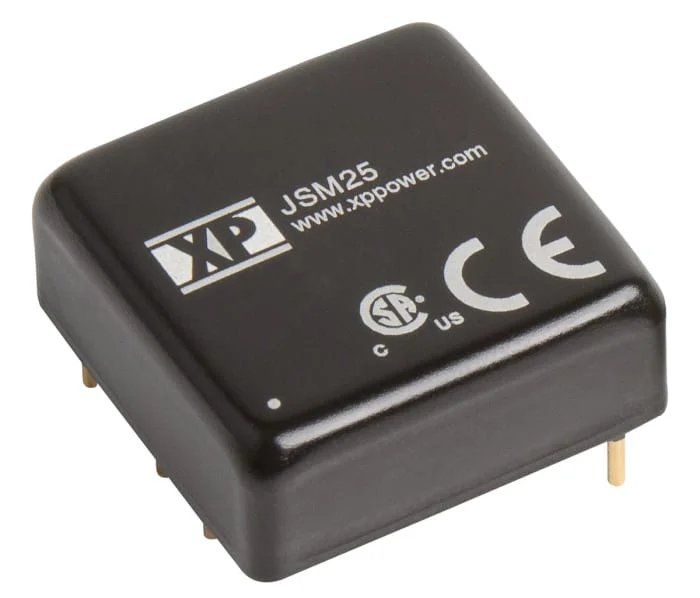

XP Power – JSM25 Series of Isolated DC-DC Converters

The JSM25 series from XP Power offers a highly reliable range of regulated single and dual output, 25 W, isolated DC-DC converters. The series has been designed in a small 1” x 1” package, features 1500 VDC in isolation and meets all ITE safety approvals. These compact DC-DC converters also attribute a 2:1 input range, remote on/off, high power density and a wide -40 °C to +100 °C operating temperature range.
