XP Power JHM DC/DC Converter, 5V dc/ 0.6 A, 9V dc Input, 3V Input 10 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

Description

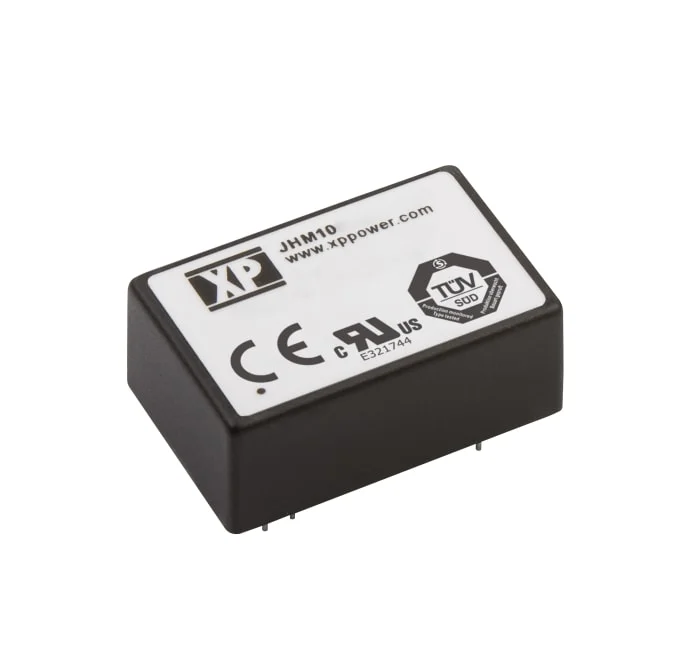

XP Power – JHM10 Series of Isolated DC-DC Converters

The JHM10 series from XP Power offers a highly reliable range of 10 W, isolated DC-DC converters. The series has been designed in an industry standard DIP-24 package, features 4000 VAC reinforced insulation and has been internationally medically approved. The range attributes 2 μA patient leakage current, a wide operating temperature of -40 °C to +80 °C and safety approved to IEC60601-1, 3rd edition.
