Wurth Elektronik 385 Series Pluggable Terminal Block, 4-Contact, 5 mm Pitch, 1 Row, 691385700004

Description

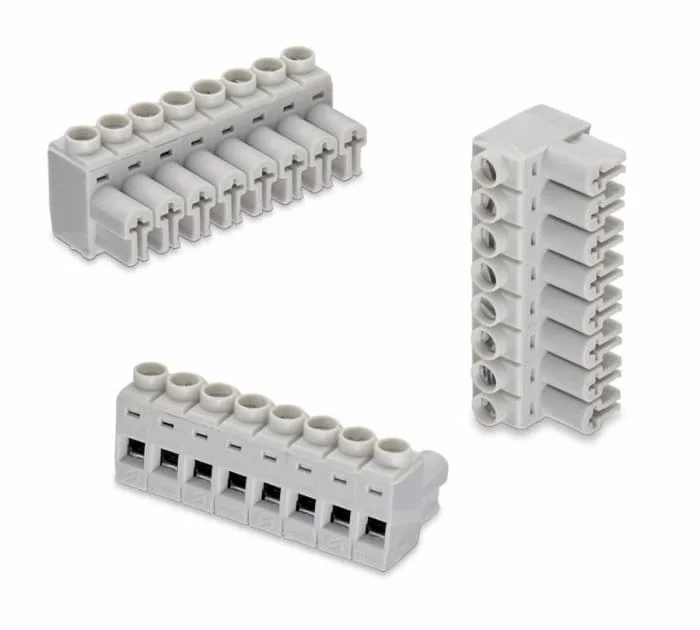

Wurth WR-TBL 385 Series 5.0mm Pitch Terminal Block Plug Connectors

WR-TBL 385 series terminal block plug connectors with a 5.0mm pitch and a horizontal wire entry.These 385 series 5.0mm terminal block plugs use an M2.5 screw terminal termination method for a secure connection to the conductor. The housings are made from grey UL94-V0 polycarbonate and are designed to be divisible. These 5.0mm 385 series terminal block plugs will accept a wire size of 24-12 AWG (0.2-2.5 mm²)
