Description

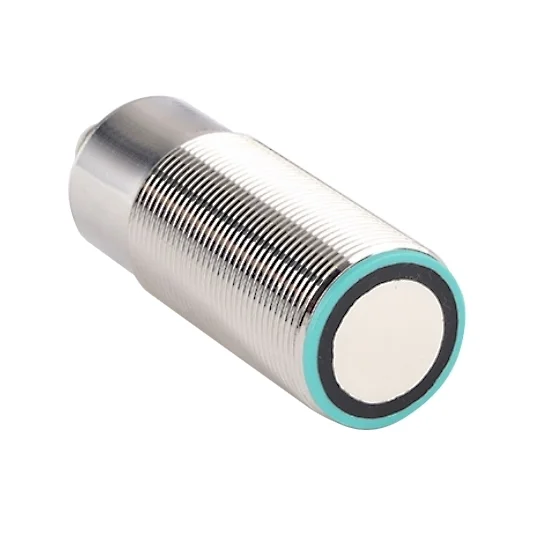

Ultrasonic sensor maximum range is 2000mm, IP67 waterproof grade for protection. Ultrasonic sensor price is affordable, with high quality nickel copper alloy material. Switch output bright and dark can be set in ultrasonic distance sensor.
Specification:
| Detection Distance | 200mm-2000mm |
| Blind Area | 150mm |
| Standard Detector | 100x100mm |
| Supply Voltage | 24V DC±10% |
| Consumption Current | Less than 50mA |
| Response Time | 48ms (min) |
| Detection Accurancy | ±0.25% FS |
| Working Temperature | -20 ℃—+60 ℃ |
| Storage Temperature | -25 ℃—+70 ℃ |
| Vibration Frequency | 10-55Hz |
| Withstand Voltage | 100VAC 50/60Hz, 1minute |
| Insulation Electronic Resistance | DC 500V, more than 20MQ |
| Shell Material | Nickel Copper Alloy (plastic part is PBT) |
| Protection Level | IEC IP67 |
| Certification | CE |
| Warranty | 12 months |
Dimension (mm):
Wiring:
Application:
Tips: The Difference Between Ultrasonic Sensor and Sonar Sensor
Sonar sensors directly detect and identify objects in the water and outlines on the bottom. A sonar sensor sends out a sound wave signal, which bounces back when it encounters an object and calculates its distance and position based on the reflection time and wave pattern. Ultrasonic wave is a mechanical wave whose vibration frequency is higher than sound wave. It is produced by the vibration of the energy converter chip under the excitation of voltage. It has the characteristics of high frequency, short wavelength and small diffraction. Especially good directionality, can be turned into rays and directional transmission. Sonar sensor is mainly used to detect biology.
