Description

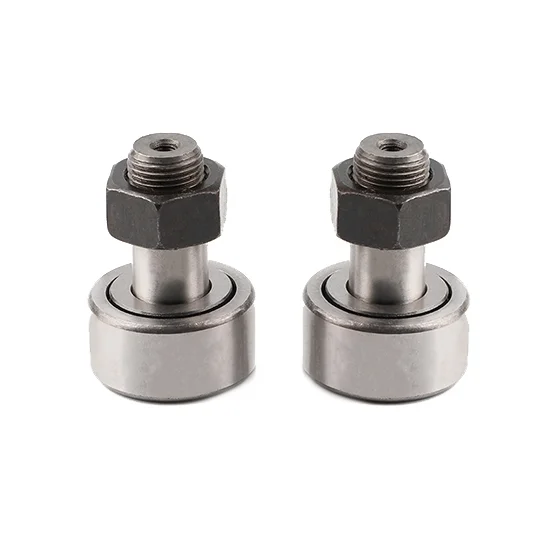

12mm track roller bearing for sales with the eccentric 0.25e, the cam follower bearing is composed of outer ring cages pressed in the rolling bodies’ axial guidance and the retaining edges steps which form highly effective gap sealing.
Specification
- Model: ATO-CF12
- Inner diameter: 12mm
- Outer diameter: 30mm
- Width: 14mm
- Accuracy class: P4
- Eccentric: 0.25e
- Basic load rating: Dynamic: 270kgf, Static: 170kgf
- Material: Bearing steel
Dimension (mm)
| Model | D | C | G | D1 | G1 | B max | B1 max | B2 | C1 |
| ATO-CF12 | 30 | 14 | M6*1 | 12 | 8 | 12.2 | 28.2 | 16 | 0.6 |
Application
Tips: What does a cam follower bearing do?
The cam follower bearing is a compact and highly rigid bearing with a shaft. It contains needle rollers and is used as a guide roller for cam mechanisms or straight motion. Since its outer ring rotates while keeping direct contact with the mating surface, this product is thick-walled and designed to bear an impact load.
