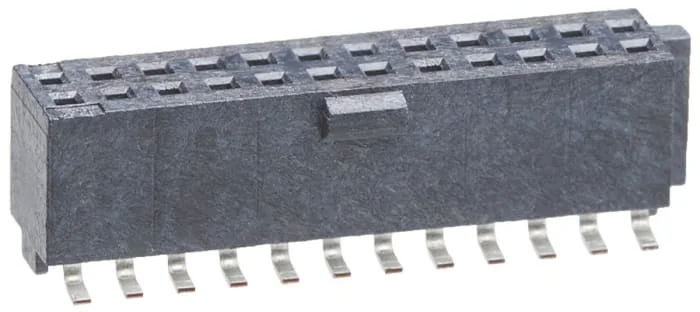

Molex Slim-Grid Series Straight Surface PCB Socket, 12-Contact, 2 Row, 1.27 mm Pitch Solder

Description

Molex 1.27 mm Slim-Grid Board to Board Connectors

Slim-Grid board to board connectors with a 1.27 x 1.27 mm grid pattern for design flexibility in high density board to board applications. These Slim-Grid board to board header and socket connectors feature single-sided polarization slots and tabs to prevent incorrect orientation and mismating. Locking windows on the header and locking ramps on the socket ensure a secure and robust connection is made when the connectors are mated. The shrouded right angle header connectors feature PCB locating pegs for accurate placement on the PCB and the unshrouded headers feature pick and place caps.
