Description
Specifications

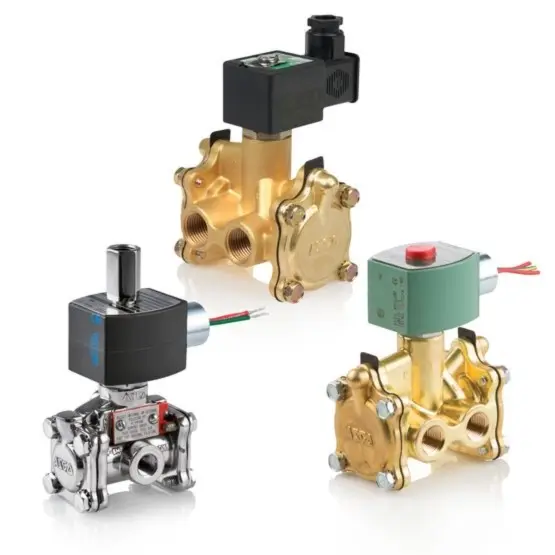

- Valve Actuation: Solenoid
- Function: 3 way – 3/2 Normally Closed
- Body Material: Brass
- Flow (Cv): 4.8 Cv
- Pipe/Port Type and Size: NPT 3/4
- Media: Air, Inert Gas, Water
- Min Operating Pressure (Air): 10 psi
- Max Operating Pressure (Air): 125 psi
- Min Operating Pressure (Water): 10 psi
- Max Operating Pressure (Water): 125 psi
- Product Weight: 4.1 lbs
- Watt Rating: 10.6 W
- Orifice Size: 11/16 in
- Coil Class: H
- Coil Number: 238510-004-D
- Mounting Direction: ANY, 18 inch
- Carton Note: 3/4 X 11/16 3NC BRASS 10.6/H DC
- Kit Number: 314493
