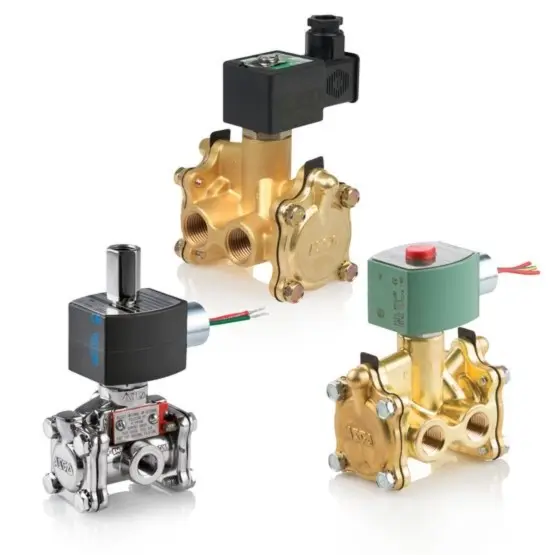

ASCO HT8316G074AC120/60,110/50D – Pilot Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 4.8 Cv
• Pipe/Port Type and Size: NPT 3/4
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 125 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Product Weight: 4.1 lbs
• Voltage and Frequency: 110, 120 Volts AC with 50/60 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 11/16 in
• Coil Class: HT
• Coil Number: 238410-032-D
• Lead Length: 18 inch, Any
• Carton Note: 3/4 X 11/16 3NC BRASS 6.1/H AC
• Kit Number: 314491
