Description
Specifications

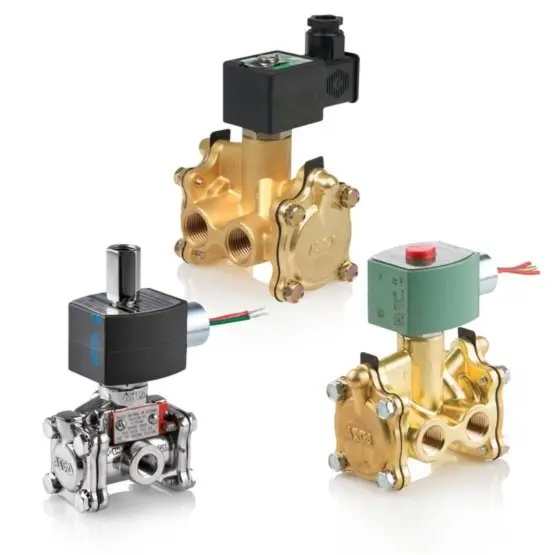

- Valve Actuation: Solenoid
- Function: 3 way – 3/2 Normally Open
- Body Material: Brass
- Flow (Cv): 3.2 Cv
- Pipe/Port Type and Size: NPT 1/2
- Media: Air, Inert Gas, Water
- Min Operating Pressure (Air): 10 psi
- Max Operating Pressure (Air): 150 psi
- Min Operating Pressure (Water): 10 psi
- Max Operating Pressure (Water): 125 psi
- Product Weight: 3.9 lbs
- Voltage and Frequency: 120 AC with 60 Hz
- Watt Rating: 6.1 W
- Holding Current (VA): 16
- Orifice Size: 5/8 in
- Coil Class: H
- Coil Number: 238410-032-D
- Lead Length: ANY, 18 inch
- Carton Note: 1/2 X 5/8 3NO BRASS 6.1/H AC
- Kit Number: 314492-MO
