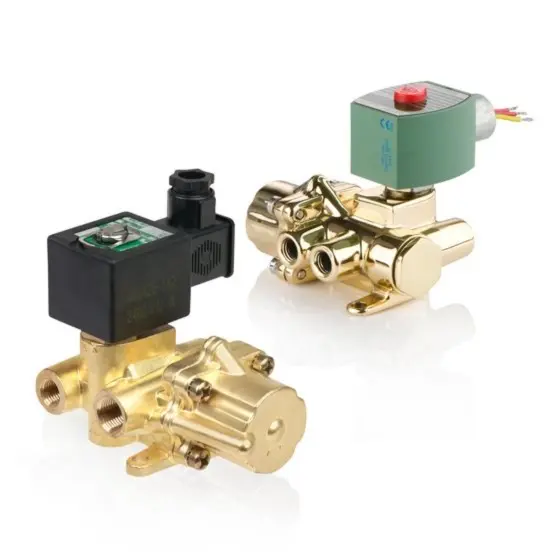

ASCO 8344G050AC100/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 1.4 Cv
• Pipe/Port Type and Size: NPT 3/8
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 180°
• Product Weight: 7.7 lbs
• Voltage and Frequency: 100 Volts AC with 50 Hz
• Watt Rating: 10.1 W
• Holding Current (VA): 25
• Orifice Size: 3/8 in
• Coil Class: FT
• Coil Number: 238610-027-D
• Mounting Direction: Any, 18 inch
• Carton Note: 3/8 X 3/8 4W BRASS 10.1/F AC
• Kit Number: 302724
