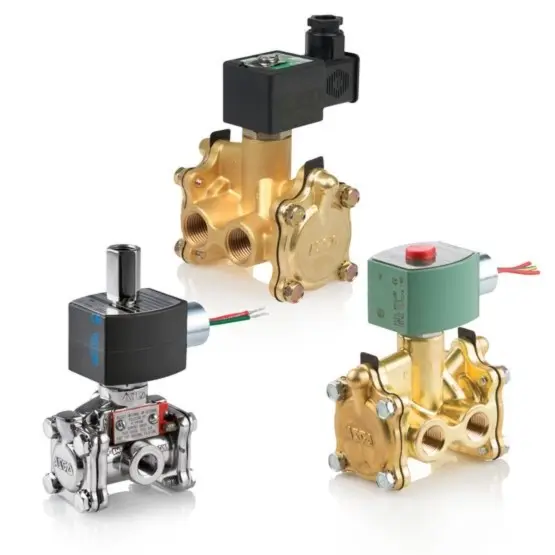

ASCO 8316G066AC240/60,220/50D – Pilot Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 3.2 Cv
• Pipe/Port Type and Size: NPT 1/2
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 125 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 180°
• Product Weight: 3.9 lbs
• Voltage and Frequency: 220, 240 Volts AC with 50/60 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 5/8 in
• Coil Class: FT
• Coil Number: 238210-058-D
• Mounting Direction: 18 inch, Any
• Carton Note: 1/2 X 5/8 3NO BRASS 6.1/F AC
• Kit Number: 314492
