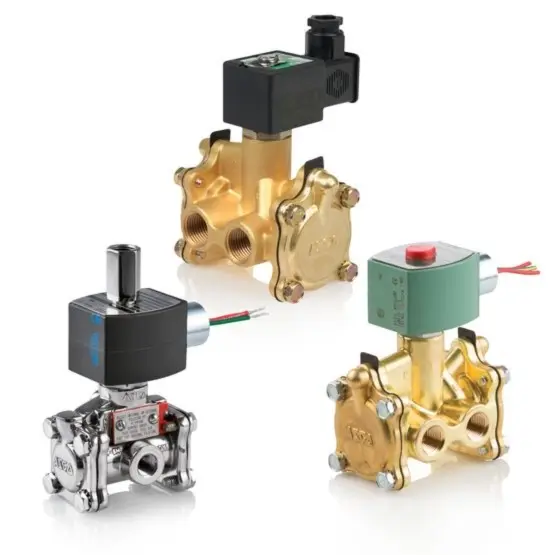

Description
Specifications
- Valve Actuation: Solenoid
- Function: 3 way – 3/2 Normally Closed
- Body Material: Brass
- Flow (Cv): 4 Cv
- Pipe/Port Type and Size: NPT 1/2
- Media: Air, Inert Gas
- Min Operating Pressure (Air): 15 psi
- Max Operating Pressure (Air): 120 psi
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 104°
- Min Fluid Temperature: 32°
- Max Fluid Temperature: 120°
- Voltage and Frequency: 24 Volts DC
- Watt Rating: 11.6 W
- Orifice Size: 5/8 in
- Coil Class: FT
- Coil Number: 238710-006-D
- Lead Length: Any, 18 inch
- Carton Note: 1/2 X 5/8 3NC BRASS 11.6/F DC
- Kit Number: 318183-V
