AccuEnergy RIK-V-3 RIK V Rogowski Integrator, 0-5V / 0-10V Output, 3-Channel, 7 Selectable Ratios, 2.5A-60kA Range, Coil & Power Supply Sold Separately

Description

AccuEnergy RIK-V-3 : RIK V Rogowski Integrator, 0-5V / 0-10V Output, 3-Channel, 7 Selectable Ratios, 2.5A-60kA Range, Coil & Power Supply Sold Separately

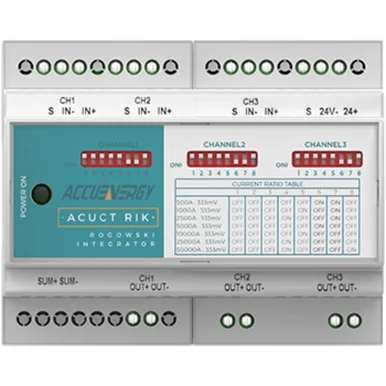

The AccuEnergy RIK-V-3 RIK V Rogowski integrator converts a Rogowski coil signal into a 0-5Vdc or 0-10Vdc nominal output (field configurable) for automation and monitoring systems. It is available in 3-channel configurations for single-phase or three-phase applications.

Common Applications

• Automation and process control systems (0-5V / 0-10V inputs)
• Single-phase or three-phase current measurement using Rogowski coils
• Crowded panels or large busbars where flexible coils simplify installation

Specifications

• Current Range: 2.5A to 60,000A
• Integrator Output: 0-5Vdc or 0-10Vdc (field configurable)
• Accuracy: ±1% full scale error
• Measurement Channels: 3
• Frequency Range: 45Hz to 65Hz
• Mounting: DIN TS-35/7.5 or 15 (DIN 43880) or panel
• Note: Rogowski coil and power supply sold separately
