Description

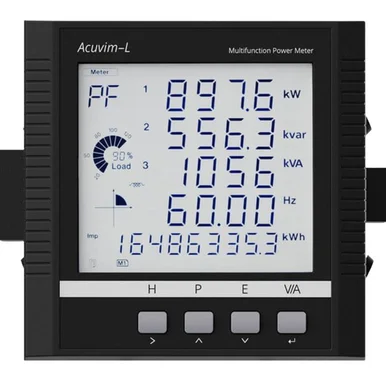

AccuEnergy ACUVIM-EL-D-5A-P2V4 : Acuvim EL Multifunction Power & Energy Meter, Panel Mount Meter with LCD Display, 5A/1A CT Current Input (Input Field Selectable), Low Voltage DC Power Supply (20~60Vdc), Class 0.2, Harmonics up to 63rd
The AccuEnergy ACUVIM-EL-D-5A-P2V4 is an Acuvim L Series multifunction power and energy meter built for accurate kWh metering and real-time electrical monitoring in panels, switchgear, and critical distribution equipment. Model EL delivers Class 0.2 energy accuracy with harmonics up to 63rd. Configuration: Panel Mount Meter with LCD Display. Current input: 5A/1A CT Current Input (Input Field Selectable). Control power: 20~60Vdc. Optional AXM communication modules available (Modbus RTU via AXM-RS485, and advanced Ethernet/web options such as AXM-WEB2).
Specifications:
| Series | Acuvim L |
| Meter Model | Acuvim-EL |
| Energy Accuracy | Class 0.2s (IEC 62053-22) / Class 0.2 (ANSI C12.20) |
| Harmonics | Harmonics up to 63rd |
| Mounting | Panel Mount Meter with LCD Display |
| Current Inputs | 5A, 1A, 333mV, Rogowski Coil (option dependent; input field selectable) |
| Voltage Inputs | Up to 828Vac line-to-line / 480Vac line-to-neutral |
| Control Power | 20~60Vdc |
| Frequency | 45.00Hz to 65.00Hz |
| Operating Temperature | -25¡C to 70¡C (-13¡F to 158¡F) |
Datasheets
| Acuvim L Multifunction Power & Energy Meter Datasheet |
