Description
Compared to an electromechanical relay, these solid-state relays feature no moving parts, which helps to offer fast response and long service life. It switches when an external voltage is applied across its control terminals. The solid-state design eliminates wear from moving parts, and it also does not feature arcing contacts that could potentially deteriorate.
Bolt Installation – Horizontal Type

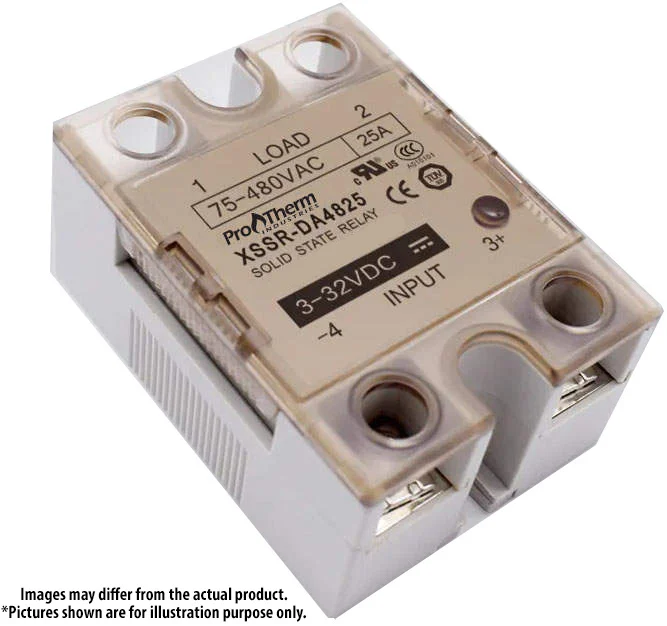

Single Phase AC Solid State Relay
Triac NO output
DC-AC DC Signal control AC load /AC-AC AC Signal control AC load
Optoelectriconic devices isolation
Zero crossing / Random Trigger Form
SMD Mount Technology
Built-in RC absorbing circuit & Varistor protection
LED Status Indicator
Control voltage: 3-32VDC
Control current: 6-25mA
Reverse voltage: 32VDC
Guarantee close voltage: 1VDC
Guarantee open voltage: 3VDC
Load voltage: 75-480VAC
Load max current: 10A-100A
Load mini current: 0.08A
Breakover voltage: ≤2VAC
Output leakage current: ≤5mA
Medium withstand voltage: ≥2500VAC
Insulating resistance: ≥100MΩ
Switching time: ≤10mS
Frequency range: 50-60Hz
Operating temperature: -20-70°C
Load current safety factor: Resistive 50-60% Inductive 30-40%
