Description

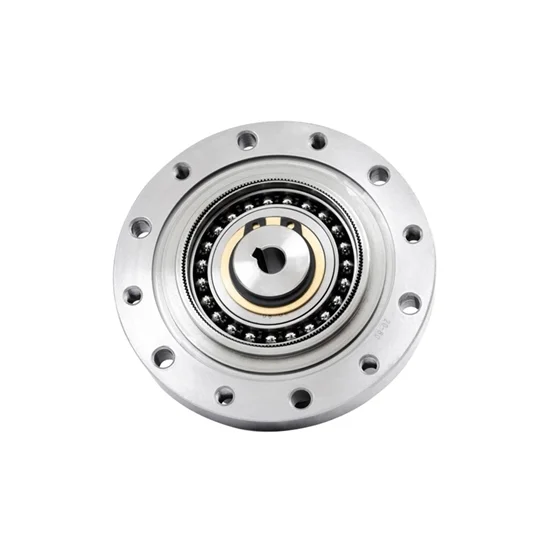

Cheap 73 mm harmonic drive gearbox for sale online. High precision harmonic gearing with 30/50/80/100 gear ratios is the best solution for industrial robots, CNC equipment, medical instruments, military industry and other fields.
Features
- It is a strain wave harmonic drive gearbox with high rigidity, no gear backlash and coaxial input and output.
- The gearbox features excellent positioning accuracy and rotation accuracy.
- Harmonic reducer with a high torque capacity and a high gear ratio is available.
- 73 mm strain wave gearbox is designed for robots.
Specifications
- Model: ATO-CSF-14-I
- Type: Self-aligning
- Diameter: 73 mm
- Thickness: 44.03 mm
- Gear type: Cylindrical gear reducer
- Installation form: Horizontal
- Input speed: 3500 rpm
- Rated power: 0.1 kW
- Output speed: 0~500 rpm
- Available torque: 1~100 N.m
- Gear ratio: 30, 50, 80, 100, other gear ratios please contact us.
Parameters
| Gear ratio | 30 | 50 | 80 | 100 |
| Rated torque when input 2000r/min (N.m) | 4 | 5.4 | 7.8 | 7.8 |
| Allowable peak torque at start and stop (N.m) | 9 | 18 | 23 | 28 |
| Maximum allowable average load torque (N.m) | 6.8 | 6.9 | 11 | 11 |
| Momentary allowable maximum torque (N.m) | 17 | 35 | 47 | 54 |
| Allowable maximum input speed (r/min) | 8000 | |||
| Allowable average input speed (r/min) | 3500 | |||
| Arc seconds | ≤20 | ≤20 | ≤10 | ≤10 |
Dimensions (unit: mm)
Harmonic Drive Gearbox Applications
ATO harmonic drive gearboxes can be used to optimize the shape of robots, increase precision, increase strength, improve flexibility, etc., and are widely used in industrial robots, numerical control equipment, medical instruments, military and other fields.
Tips: What is a harmonic drive gearbox used for?
The harmonic drive gearbox is mainly used to reduce the speed and increase the torque while ensuring that the equipment can reliably complete the process tasks, and to ensure the positioning accuracy and repeat positioning accuracy of the process when the same action is repeatedly performed.
