Description

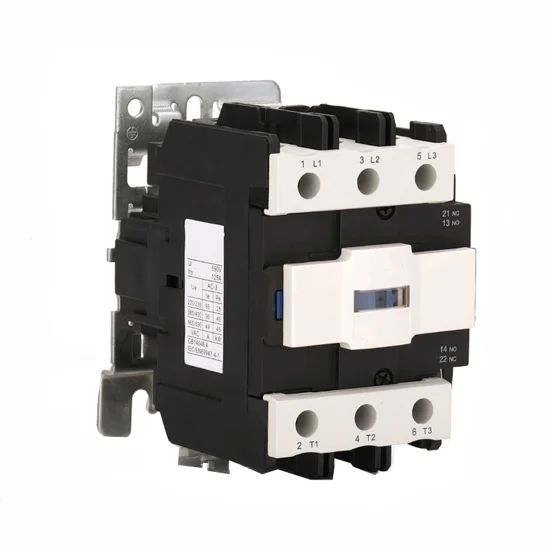

3 pole electrical contactor relay, coil voltage 24V/110V/220V is available, rated currrent 25A, AC bypass contactors are widely used in electric drive systems.
Sepecifications:
| Model | ATO-CJX2-25 | |
| Rated Operational Current (AC-3) | 380V | 25A |
| 660V | 18A | |
| Conventional Heating Current | 40A | |
| Rated Insulation Voltage | 690V | |
| Power of Controllable 3-phase Squirrel-cage Motor (AC-3) | 220V | 5.5kW |
| 380V | 11kW | |
| 660V | 15kW | |
| Operational Frequency (AC-3) | Electric Life | 1200 times/h |
| Mechanical Life | 3600 times/h | |
| Service Life | Electric Life (104 times) | 100 |
| Mechanical Life (104 times) | 1000 | |
| Matching Fusing Model | RT16-32 | |
| Average Power Consumption (20℃) @ 50Hz | Pick-up | 110VA |
| Holding | 11VA | |
| Contact Form (Optional) | 3P+NO or 3P+NC | |
| Rail Size | 35mm | |
| Ambient Temperature | -5℃~+40℃ | |
| Altittude | ≤2000m | |
| Class of Pollution | Class 3 | |
| Installation Category | Ⅲ | |
| Weight | 0.52kg |
Dimenions (unit: mm)
Details
Tips: Noice of AC Contactor, How to Solve?
Possible causes of failure:
- Insufficient power supply voltage, insufficient electromagnet suction.
- The magnetic system is improperly assembled or shaken by vibration or the parts are stuck, the core cannot be absorbed.
- The surface of the pole is rusty or foreign matter (such as grease, dust, hair, etc.) invades the core surface.
- Contact spring pressure is too large.
- Short circuit ring break.
- Iron core pole wear is excessive and uneven.
- Coil turn-to-turn.
Maintenance method
- Increase the voltage of the operating circuit.
- This system should be adjusted during processing to identify and eliminate the inflexibility of the machine.
- Clean the core face.
- Replace the core or short circuit ring.
- Replace the coil.
