Description

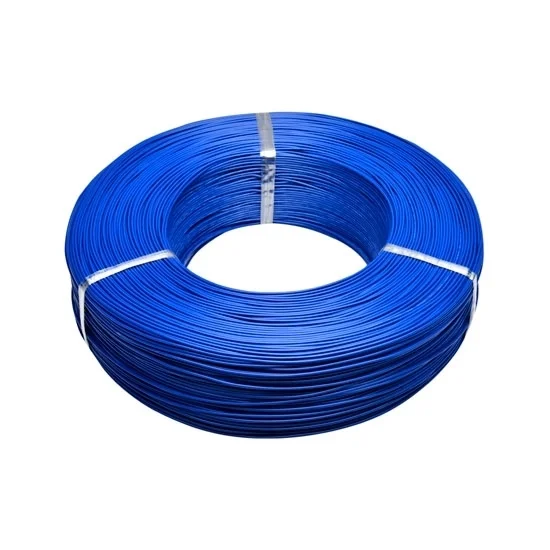

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.
Specification
| Model | ATO-UL1430-22 | |
| UL Style | 1430 | |
| Size | 22 AWG | |
| Rated Voltage | 600V | |
| Color (Optional) | White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple | |
| Rated Temperature | 105 ℃ | |
| Conductor | Tinned/ Bare Copper | |
| Conductor Type | Stranded | |
| Conductor Size (±0.005） | NO. 17/ 0.16mm | |
| Conductor Resistance 20℃ | 59.40 Ω/Km | |
| Conductor Diameter | 0.76mm | |
| Insulation | PVC | |
| Insulation Thickness | Nom. | 0.38mm |
| Min. | 0.33mm | |
| Overall Diameter | Average | 1.52mm |
| Tolerance | ±0.10mm | |
| Package | 2000 ft/roll | |
| Weight | 3.5kg |
