Description

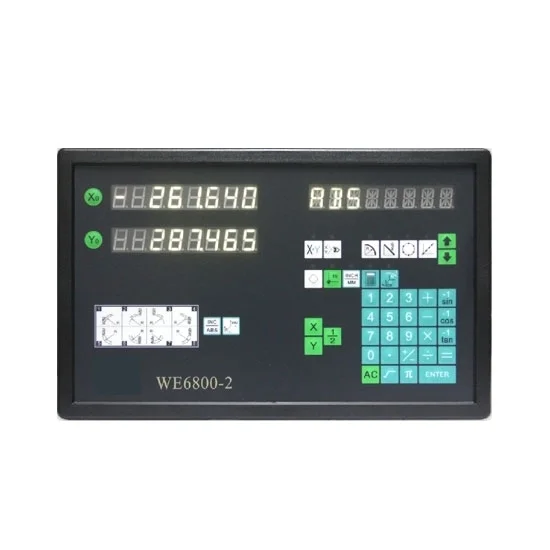

2 axis digital display scale 0.1 um, 0.5 um, 5 um, 10um, 50um, for milling machine, lathes, and surface grinders. Avaliable length to 900mm, input signal TTL.
After purchasing a ATO DRO digital readout, you can buy a linear scale for milling machine, lathes or table saw fence.
Features
1. Professional design of independent power supply, power supply anti-interference ability and signal anti-interference ability to achieve more than 2200V.
2. Quality and durable light touch button panel with sound prompt for key operation.
3. Without battery, it can remember the coordinate value of the position when the power is lost after power failure.
4. DRO digital readout can be connected to grating ruler or encoder, which can meet the processing test of all kinds of machine tools.
5. Wide voltage input range, input voltage AC90V-AC240V.
Specifications
| Model | ATO-DR-WE68002 |
| Axis number | 2 Axis |
| Resolution | 0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm |
| Input Signal | TTL, Frequency < 2MHZ, Current > 1mA |
| Input Voltage Range | 90 VAC-240V AC |
| Power | Less than 15W |
| Max Measuring Length | 900mm |
| Frequency | 50 Hz – 60 Hz |
| Anti Interference Capability | Over 2200V |
| Dimension | 296mm x 184mm x 44mm |
Dimension (unit: mm)
