Description

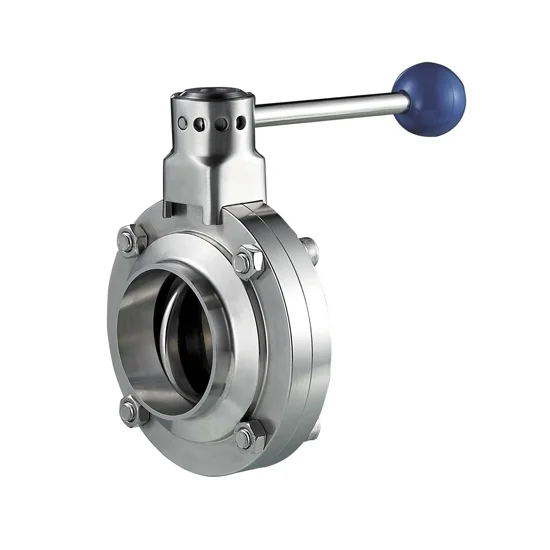

1.5 inch manual operated sanitary butterfly valve also can be controlled by an electric actuator or pneumatic actuator. It is a stainless steel hygienic valve with simple structure and purity requirements for food-processing and chemical industries.
Specification
| Model | ATO-BV-15I |
| Type | SS Sanitary Butterfly Valve |
| Size | 1.5 inch |
| Connection Method (Optional) | Welded End/ Quick Connect End |
| Drive Method | Manual |
| Body Material | 304 Stainless Steel (Default) / 316 Stainless Steel |
| Washer and Gasket | EPDM Comforms to PFA 177.2600 |
| Handle | AISI 304/ PP |
| Surface Finishing | Ra≤0.8 |
| Operating Torque | 3Nm |
| Operating Temperature | -10℃~+120℃ |
| Max. Pressure | 1MPa |
| Min. Pressure | 0.02MPa p.abs |
| Weight | 1.8 kg |
| Certificate | PED97-23EC, FDA.177.2600 |
Dimensions (Unit: mm)
| Size | Dn | D | D1 | J | H | H1 | A1 | A2 |
| 1.5 inch | 35.1 | 38.1 | 50.5 | 126 | 44.5 | 43.5 | 50 | 70 |
Tips: What is tri clamp sanitary butterfly valve?
A sanitary butterfly valve is a stainless steel BF valve that uses a circular butterfly plate as an opening and closing part and rotates with the valve stem to open, close and adjust the fluid passage. The butterfly plate of the butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis, and the rotation angle is between 0° and 90°. When the rotation reaches 90°, the valve is fully open.
