Description

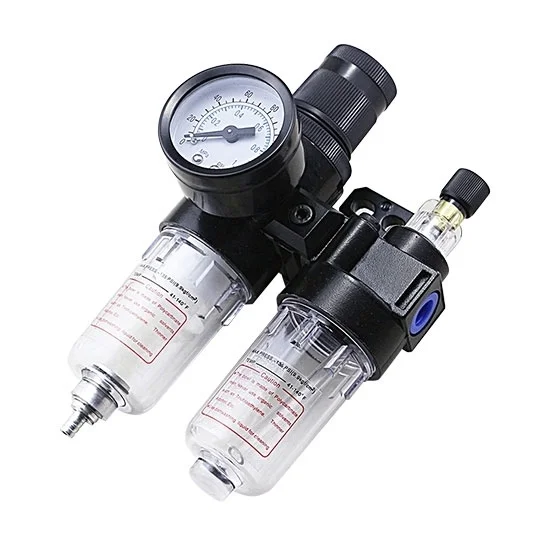

Air FRL unit is a combination of filter, regulator and lubricator. It can filter the water, oil and other impurities in the compressed air, and keep the air source in a constant state to reduce the damage to valves or actuators of the device.
Features
- The structure of FRL unit is delicate and compact, which is convenient for installation and application.
- The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
- The pressure loss is low and the efficiency of water separating is high.
- The quantity of oil dripping can be directly observed through transparent check dome.
Specification
| Model | ATO-AFC2000 |
| Fluid | Air |
| Pressure Type (Optional) | Standard (0.9 MPa), Lower Pressure (0.4 MPa) |
| Drain Type (Optional) | Semi-auto Drain, Manual Drain |
| Port Size | 1/4″ |
| Thread Type (Optional) | PT Thread (Scale: MPa, kgf/cm2, PSI) G Thread (Scale: Bar) NPT Thread (Scale: PSI) |
| Filtering grade (Optional) | 40μm or 5μm |
| Pressure range | Semi-auto and automatic drain: 0.15-0.9 mpa (20-130 PSI) manual drain: 0.05-0.9 mpa (7-130 PSI) |
| Max.pressure | 1.0 MPa (145 PSI) |
| Proof pressure | 1.5 MPa (215 PSI) |
| Temperature range | -5~70 ℃ (Unfreeze) |
| Capacity of drain bowl | 15 CC |
| Capacity of oil bowl | 25 CC |
| Recommended lubricant | ISO VG 32 or equivalent |
| Weight | 0.5 kg |
Details
| 1 | Filter & Regulator | |
| 2 | Bracket | |
| 3 | Gasket | |
| 4 | Fixed Kit | |
| 5 | Screw | |
| 6 | Lubricator |
Dimensions (Unit: mm)
Pressure and Flow Diagram
Tips: Composition of pneumatic system
- Air compressor
- Main road purification equipment
- FRL unit, filter, regulator, lubricator
- Direction control components: electric valve, reversing valve
- Pneumatic actuator: cylinder, pneumatic actuator
